Hydraulic Flat Cylinder RSSM-500 Cap 45T Stroke 16mm Sun Run

Rp. 100
Last Updated
13 Jul 2024
Country Origin
Taiwan
Minimum Order
1 Unit

RSSM S/A Hydraulic Cylinder Sun Run is the perfect solution for hydraulic drive needs with strong thrust and maximum reliability. With sturdy design and top quality, this hydraulic cylinder is designed to provide optimal performance and high efficiency.

The main advantage of RSSM S/A Hydraulic Cylinder Sun Run is its ability to provide strong thrust with high efficiency. Equipped with the latest hydraulic technology, these cylinders provide fast and accurate response during use. This results in high energy efficiency and optimal performance in your hydraulic system.

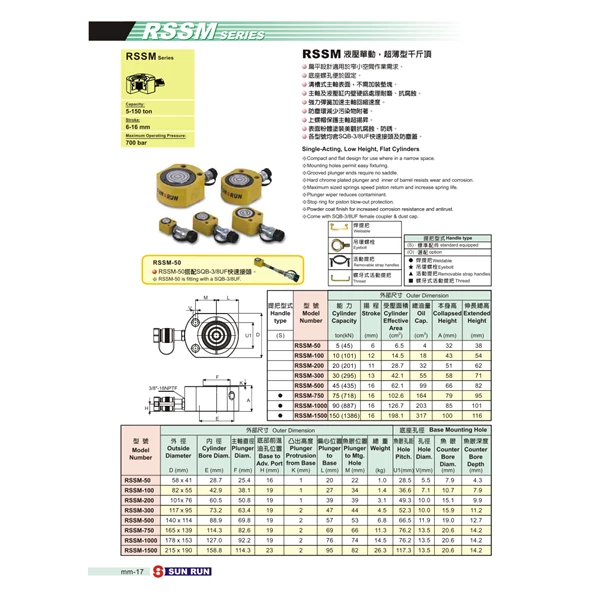

Hydraulic Cylinder RSSM-500 50 Ton Sun Run

Specifications

Model : RSSM-500 Sun Run
Cylinder Capacity : 45ton (435kN)
Stroke : 16mm
Cylinder Effective Area : 62.1cm²
Oil Capacity : 99cm³
Collapsed Height : 66mm
Extended Height : 82mm
Outside Diameter : 140 x 114mm
Cylinder Bore Diameter : 88.9mm
Plunger Diameter : 69.8mm
Base to Adv. Port : 19mm
Plunger Protrusion from Base : 2mm
Plunger to Base : 69mm
Plunger to Mtg. Hole : 66mm
Hole Pitch : 76.2mm
Hole Diameter : 13.5mm
Counter Bore Diameter : 20.6mm
Counter Bore Depth : 14.2mm

Single-Acting, Low Height, Flat Cylinders
- Compact and flat design for use where in a narrow space.
- Mounting holes permit easy fixturing.
- Grooved plunger ends require no saddle.
- Hard chrome plated plunger and inner of barrel resists wear and corrosion.
- Maximum sized springs speed piston return and increase spring life.
- Plunger wiper reduces contaminant.
- Stop ring for piston blow-out protection.
- Powder coat finish for increased corrosion resistance and antirust.
- Come with SQB-3/8UF female coupler & dust cap.

More information

Contact : @08161304970
Web : ksj.co.id
Lihat Selengkapnya

Untuk keterangan lebih lanjut, silahkan download PDF ini :

rssm series.pdf
